FPV Drone Battery

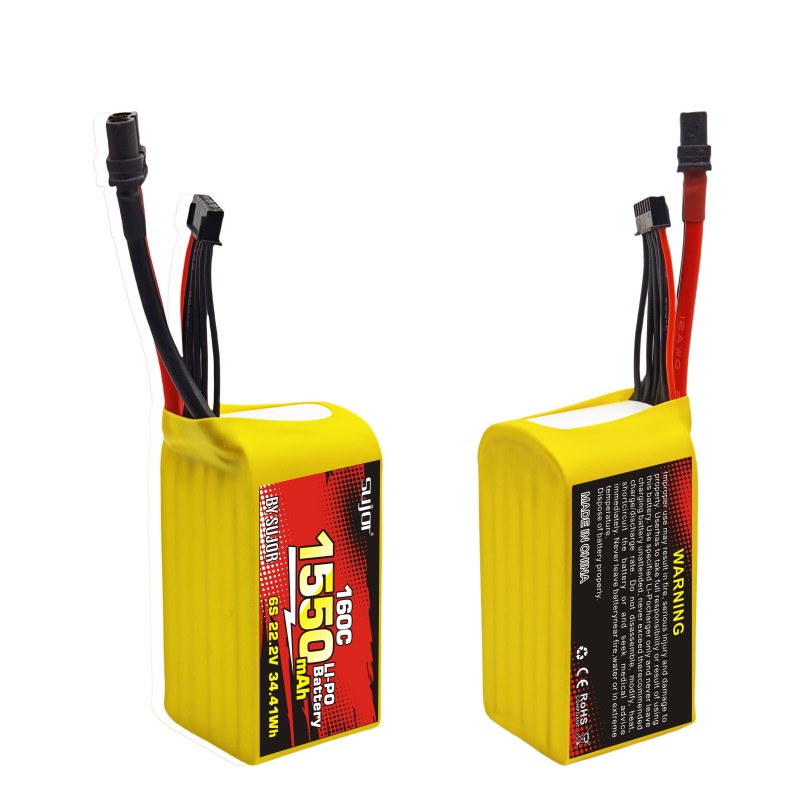

SUJOR FPV Drone Battery: High C-rate, Low IR and Long Cycle Life.
Product Introduction:
SUJOR 22.2V 1550mAh battery is specially engineered for professional FPV racing competitions. It boasts a discharge rate up to 160C which provides high burst power necessary for competitive FPV racing. The capacity could be customized for various power needs of different FPV drone setups. Our FPV battery line with improved performance is ideal choice for FPV competitors who demand superior battery performance and reliability during the high-intensity racing conditions.
Share
Basic Specification
|
Item |
Rating |
Remark |
|
Model |

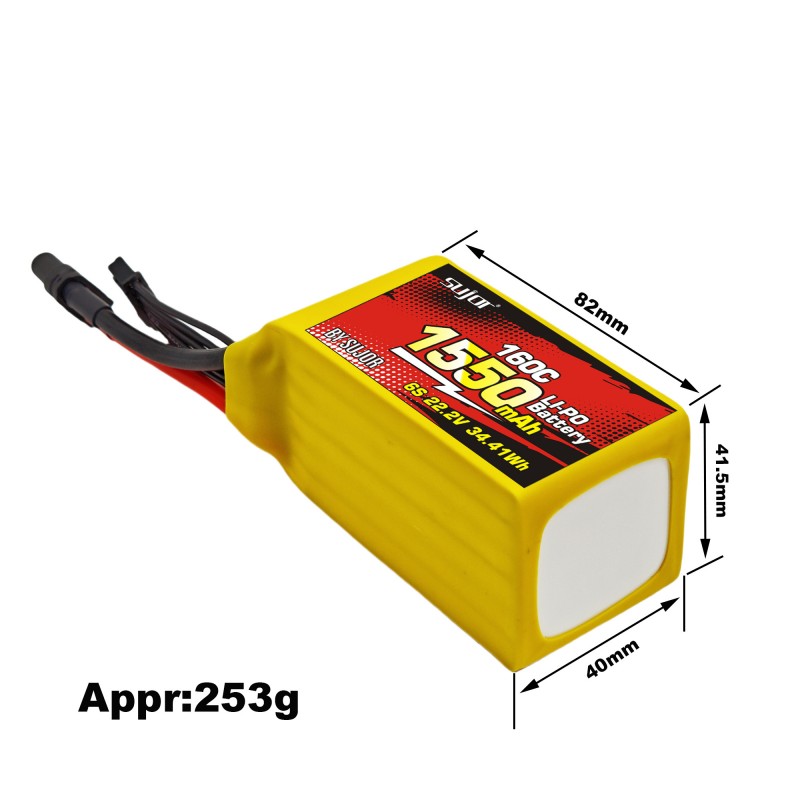

SUJOR-22.2V 6s1p 1550mAh 160C |
41.5*40*82mm(H*W*L) |
|
Nominal capacity |
1550mAh |
Standard discharge(1C5A) after Standard charge |
|
Nominal voltage |
22.2V |
|
|
Cut-off charge voltage |
25.2V |
|
|
Cut-off discharge voltage |
18.0V |
|
|
Configuration |
6s1p |
|
|
Weight |
Approx: 253g |
|
|
Anode material |
LiCoO2 |
|
|
Standard charge |
0.2C CC(constant current) charge to 25.2V,then CV(constant voltage 25.2V)till current decline to ≤0.01C |
Charge Time : Approx 7.0h |
|
Max. constant charging current |
1550mA(1C) |
|
|
Standard discharge |
Discharge at 1C5A to 18.0V |
|
|
Max. continuous discharging current |
248A(160.0C) |
|
|
Operating temperature |
Charge 0~+45ºC |
|
|
Discharge -20~+60ºC |
|
|
|
Storage temperature |
-10~+55ºC≤1 month |
|
|
-10~+45ºC≤3months |
|
|
|
-10~+25ºC≤12months |
|
|
|
Storage humidity |
45-75%RH |
|
|
Charge Connector |
Black JST-XH 7P |
|
|
Discharge Connector |
Black Amass XT60U-F |
|
Key Features
Advanced cell chemistry technology
High capacity at compact and center-balanced design
160C high-C rate designed for professional FPV racing
Highly constant and stable power output, fast charge supported
Top-quality and safe SUJOR Series batteries pass rigorous testing
7*24-hour after-sales service
Main Application
1.6-2.5 Inch FPV Drone
3-3.5 Inch FPV Drone
4 Inch FPV Drone
5 Inch FPV Drone
7-7.5 Inch FPV Drone
8-10 Inch FPV Drone

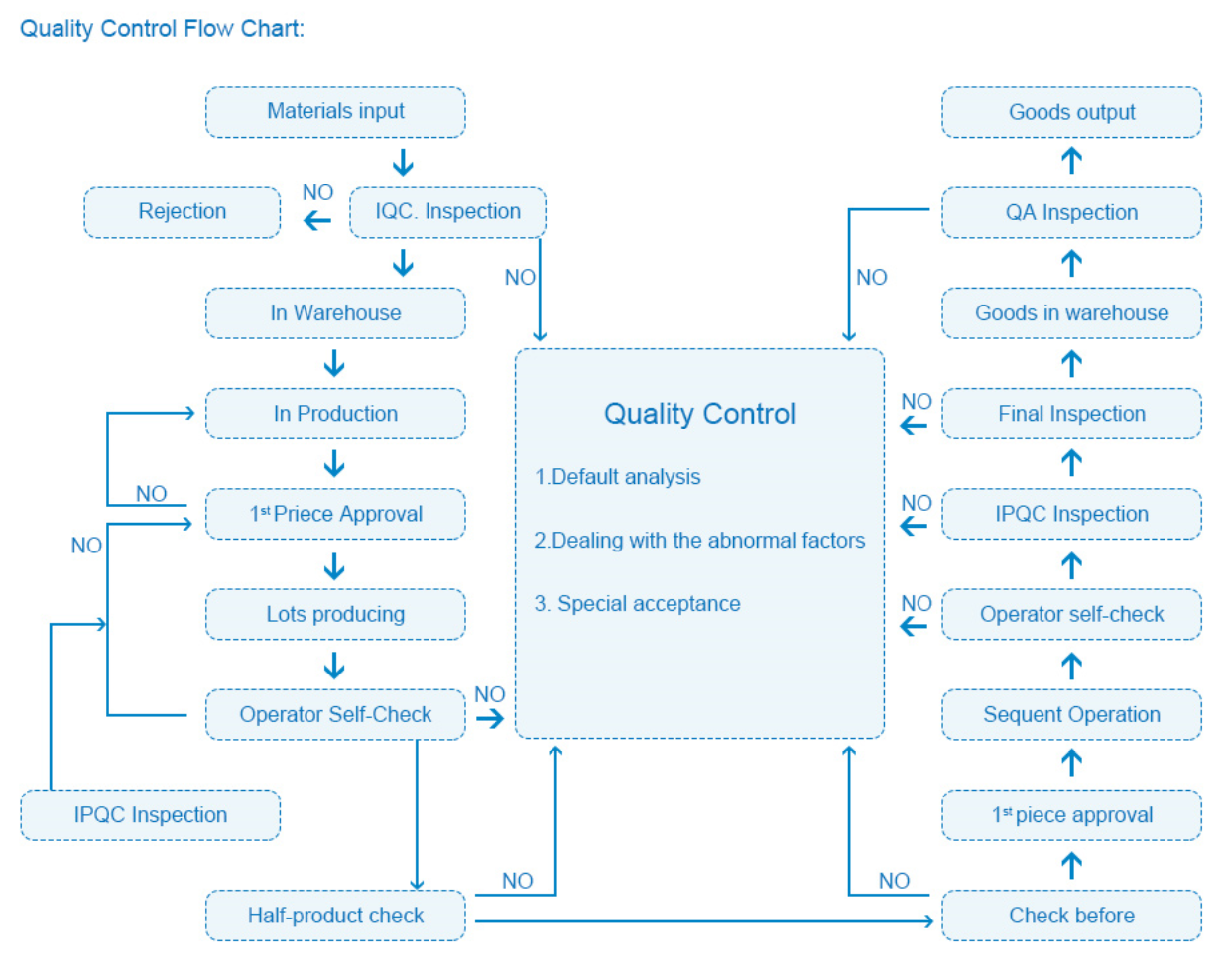

Quality Control
There are at least five steps quality control reflected in R&D process, incoming control process, production process, prior-shipment control and after-sales service process.
FAQ
Q:
What is a 5 inch FPV drone?
A:
A 5-inch FPV drone is a type of first-person-view quadcopter that uses 5-inch propellers. It is widely considered the "goldilocks" size in the FPV world—offering the best balance of agility, speed, and flight time, making it the most popular choice for both racing and freestyle flying
Q:
What are the common components for a 5-inch drone?
A:
A 5-inch drone is almost always built from modular components, allowing pilots to customize their "build." Based on product listings and guides, the typical parts include:
● Frame: Carbon fiber, H or Deadcat style.
● Motors: 19xx-22xx series (e.g., 2207, 2306).
● Battery: 4S (14.8V) or 6S (22.2V) LiPo, usually 1300-1800mAh.
● Flight Controller: F7 or H7 chipset
Q:
How to build a 5 inch FPV drone?
A:
To build a 5 inch FPV drone, you need component: frame, motors, electronic speed controllers(ESCs), flight controller(FC), propellers, battery,(4s or 6s Lipo battery with XT60 connector), FPV camera, video transmitter(VTx), antennas, receiver(Rx) and radio transmitter(Tx).
Q:
How long could a 5 inch FPV drone fly?
A:
The short answer is that a 5-inch FPV drone typically flies for 3 to 15 minutes on a single battery charge. However, this range is very broad because the actual flight time depends heavily on three main factors: the type of battery you use, your flying style, and the overall weight of your drone.
Q:
How fast can a 5 inch FPV drone fly?
A:
A 5-inch FPV drone can typically fly between 130 km/h and 220 km/h. The exact top speed depends heavily on the drone's build, motor power, and whether it's optimized for racing, freestyle, or long-range cruising.
For a quick overview, here are the top speeds from several popular 5-inch drone models:
|
Drone Model |
Type |
Top Speed |
|
Piranya-5 |
Trainer/Combat |
220 km/h |
|
iFlight SH CineFlow 5 |
Cinematic |
190 km/h |
|
AOS 5 EVO V1.2 |
Freestyle |
190 km/h |
|
HF-5inch |
Professional/Industrial |
175 km/h |
|
Simplifly 5" Long Range |
Long-Range/Cinematic |
150 km/h |
SUJOR aims to provide customers tailored lithium ion battery packs. We could not only provide customers with customized services for individual components such as battery cell, BMS and battery structure, but also offer optimal battery integrated solutions (cell+BMS+structure) based on customer’s detailed requirement.
