FPV Drone Battery
SUJOR FPV Drone Battery: High C-rate, Low IR and Long Cycle Life.
Product Introduction:

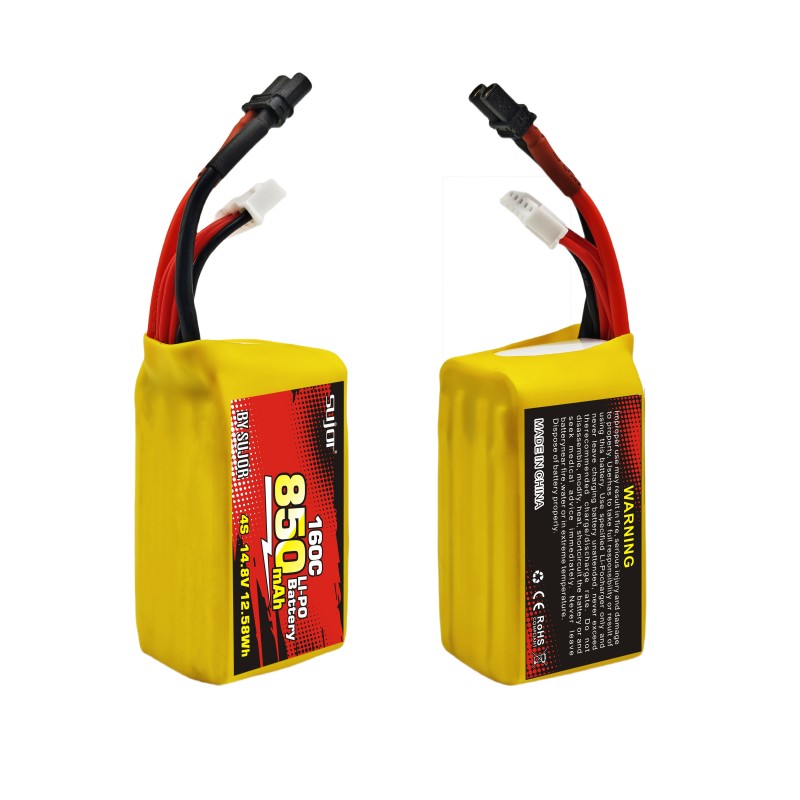

SUJOR 14.8V 850mAh battery boasts significantly enhanced discharge rate up to 160C which is top choice for professional FPV drone competitors. Our FPV drone battery has capacity ranging from 850mAh to 1850mAh. The popular voltages are 11.1V, 14.8V and 22.2V. Customized capacity and voltage are available. This provides different options for the competitive FPV community according to their various needs and preferences. We are committed to supply advanced FPV battery solutions for FPV pilots.
Share
Basic Specification
|
Item |
Rating |
Remark |
|
Model |

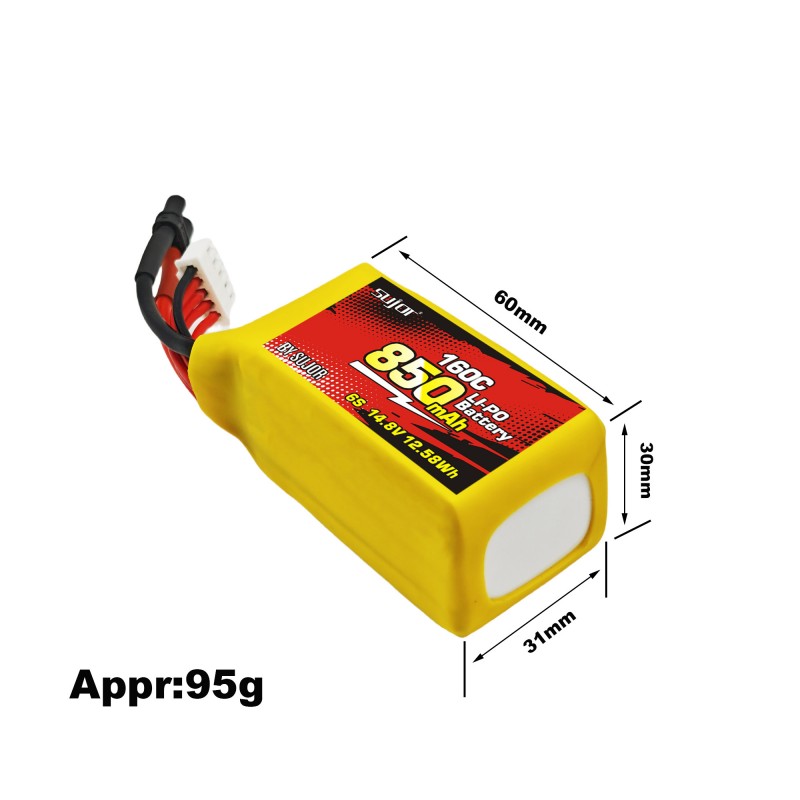

SUJOR-14.8V 4s1p 850mAh 160C |
30*31*60mm(H*W*L) |
|
Nominal capacity |
850mAh |
Standard discharge(1C5A) after Standard charge |
|
Nominal voltage |
14.8V |
|
|
Cut-off charge voltage |
16.8V |
|
|
Cut-off discharge voltage |
12.0V |
|
|
Configuration |
4s1p |
|
|
Weight |
Approx: 95g |
|
|
Anode material |
LiCoO2 |
|
|
Standard charge |
0.2C CC(constant current) charge to 16.8V,then CV(constant voltage 16.8V)till current decline to ≤0.01C |
Charge Time : Approx 7.0h |
|
Max. constant charging current |
850mA(1C) |
|
|
Standard discharge |
Discharge at 1C5A to 12.0V |
|
|
Max. continuous discharging current |
136A(160.0C) |
|
|
Operating temperature |
Charge 0~+45ºC |
|
|
Discharge -20~+60ºC |
|
|
|
Storage temperature |
-10~+55ºC≤1 month |
|
|
-10~+45ºC≤3months |
|
|
|
-10~+25ºC≤12months |
|
|
|
Storage humidity |
45-75%RH |
|
|
Charge Connector |
Black JST-XH 5P |
|
|
Discharge Connector |
White Amass XT30U-F |
|
Key Features
Advanced cell chemistry technology
High capacity at compact and center-balanced design
160C high-C rate designed for professional FPV racing
Highly constant and stable power output, fast charge supported
Top-quality and safe SUJOR Series batteries pass rigorous testing
7*24-hour after-sales service
Main Application
1.6-2.5 Inch FPV Drone
3-3.5 Inch FPV Drone
4 Inch FPV Drone
5 Inch FPV Drone
7-7.5 Inch FPV Drone
8-10 Inch FPV Drone
Certification
Our factory has been approved by ISO9001&ISO14001. And most of our products have passed CB, IEC62133, CE, RoHS, REACH, UN38.3, ect.
FAQ
Q:
What is a 5 inch FPV drone?
A:
A 5-inch FPV drone is a type of first-person-view quadcopter that uses 5-inch propellers. It is widely considered the "goldilocks" size in the FPV world—offering the best balance of agility, speed, and flight time, making it the most popular choice for both racing and freestyle flying
Q:
What are the common components for a 5-inch drone?
A:
A 5-inch drone is almost always built from modular components, allowing pilots to customize their "build." Based on product listings and guides, the typical parts include:
● Frame: Carbon fiber, H or Deadcat style.
● Motors: 19xx-22xx series (e.g., 2207, 2306).
● Battery: 4S (14.8V) or 6S (22.2V) LiPo, usually 1300-1800mAh.
● Flight Controller: F7 or H7 chipset
Q:
How to build a 5 inch FPV drone?
A:
To build a 5 inch FPV drone, you need component: frame, motors, electronic speed controllers(ESCs), flight controller(FC), propellers, battery,(4s or 6s Lipo battery with XT60 connector), FPV camera, video transmitter(VTx), antennas, receiver(Rx) and radio transmitter(Tx).
Q:
How long could a 5 inch FPV drone fly?
A:
The short answer is that a 5-inch FPV drone typically flies for 3 to 15 minutes on a single battery charge. However, this range is very broad because the actual flight time depends heavily on three main factors: the type of battery you use, your flying style, and the overall weight of your drone.
Q:
How fast can a 5 inch FPV drone fly?
A:
A 5-inch FPV drone can typically fly between 130 km/h and 220 km/h. The exact top speed depends heavily on the drone's build, motor power, and whether it's optimized for racing, freestyle, or long-range cruising.
For a quick overview, here are the top speeds from several popular 5-inch drone models:
|
Drone Model |
Type |
Top Speed |
|
Piranya-5 |
Trainer/Combat |
220 km/h |
|
iFlight SH CineFlow 5 |
Cinematic |
190 km/h |
|
AOS 5 EVO V1.2 |
Freestyle |
190 km/h |
|
HF-5inch |
Professional/Industrial |
175 km/h |
|
Simplifly 5" Long Range |
Long-Range/Cinematic |
150 km/h |
SUJOR aims to provide customers tailored lithium ion battery packs. We could not only provide customers with customized services for individual components such as battery cell, BMS and battery structure, but also offer optimal battery integrated solutions (cell+BMS+structure) based on customer’s detailed requirement.
